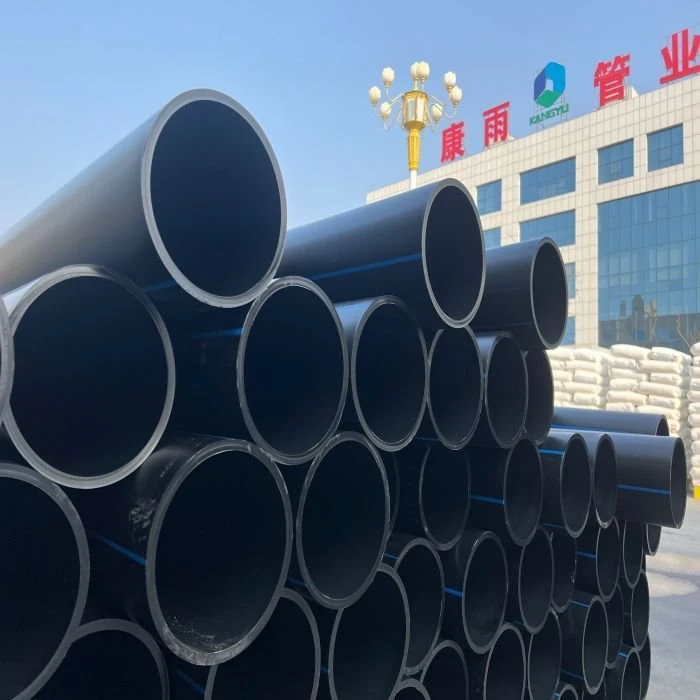

PE100 HDPE rør

Name: Kina Custom PE100 HDPE rørleverandører, producenter - Fabriks direkte engros - KANGYU
Brand: Shandong Kangyu Pipe Industry Co., Ltd
SKU: 171978115

HDPE Pipes, Polyethylene (PE Pipe) are sorted by strength classified according to the intensity of the earlier technological developments. high density polyethylene pipe pressure classes that can be made between Pn4-Pn32 and the production of the desired diameter and size of HDPE pipes system has undergone many tests in 1950, particularly in the carriage of drinking water. After the result of these tests of HDPE Pipes, if all reports are positive then it has no harmful effect on human life. One of today's most widely used pipe is HDPE pipes systems which is economical, easy in handling, efficient performance, easy method of coupling,and quite useful.PE100 Hdpe Pipe Water Project is the mostly used pipe among the drinking water system. It also have HDPE STEEL REINFORCED PIPE. This kind of HDPE pipe can bear PN30 pressure.

Send forespørgsel

Beskrivelse

Produktdetaljer

PE100	0.4MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1,25 MPa	1,6 MPa	2.0MPa	2,5 MPa
Udvendig diameter	PN4	PN5	PN6	PN8	PN10	PN12,5	PN16	PN20	PN25
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR13,6	SDR11	SDR9	SDR7.4
	Vægtykkelse (da)
20	-	-	-	-	-	-	2.0	2.3	3.0
25	-	-	-	-	-	2.0	2.3	3.0	3.5
32	-	-	-	-	2.0	2.4	3.0	3.6	4.4
40	-	-	-	2.0	2.4	3.0	3.7	4.5	5.5
50	-	-	2.0	2.4	3.0	3.7	4.6	5.6	6.9
63	-	-	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	-	-	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3	-
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	36.7	45.9	57.2	67.9	88.2	-	-	-
1400	34.3	42.9	53.5	66.7	82.4	102.9	-	-	-
1600	39.2	49.0	61.2	76.2	94.1	117.6	-	-	-

FIRMAPROFIL:

Shandong Kangyu Pipe Industry Co., Ltd., grundlagt i 2000, er en virksomhed, der er specialiseret i produktion af PP-R,PE,PE-RT,PB plastrør og fittings. Beliggende i Linyi, Shandong-provinsen, Kina, vier vi os kontinuerligt til international handel og forsyningsrørledningsforhandlere, der kommer fra hele verden med skræddersyet service. For at bygge en moderne fabrik investerer vi i en række professionelt mekanisk udstyr. Vores virksomhed beskæftiger professionelle og erfarne talenter og fokuserer menneskelige ressourcer på et komplet system af ledelse, drift og service. Vi giver vores partnere professionel og effektiv one{3}}service.

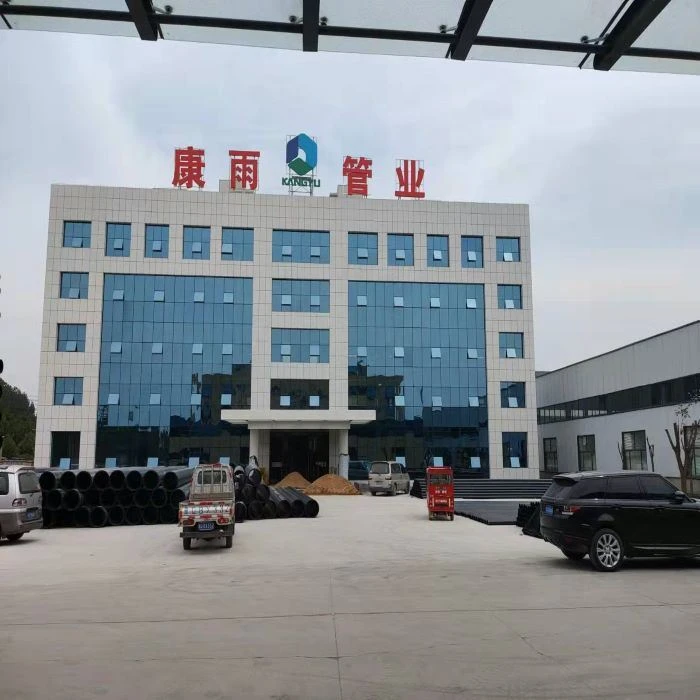

Firmabillede:
